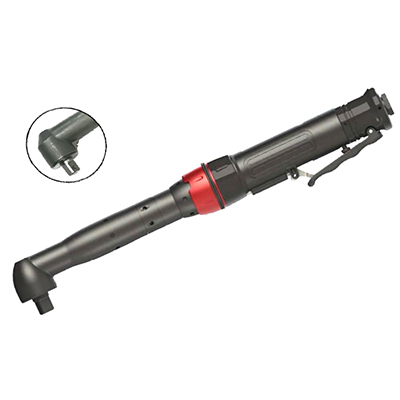

TP7170A

BACK TO LIST

Rear Exhaust ; Anvil Size : 1/2"Dr.

Inquiry
  • Product Feature
  • Product Specification
  • Accurate clutch system with 3% deviation of torque, assure the best quality
  • Wide torque range and longer life cycle of motor
  • Low noise, low vibration and high accuracy
  • One-handed operation (turn & change the rotary direction)
  • Precision machined bevel gear and angle head for easy maintenance and longer gear life
MODEL NO. TP7170A
Standard Deviation ±3
Fastening Capacity Machine M10
Tapping M10
Torque Range KGF-CM 28~56 (280 ~ 560)
Free Speed RPM 460
Air Inlet 1/4"
Hose Size 3/8"
Net Weight lbs 4.4
Kgs 2
Overall Length in. 16.5"
mm. 419
Packing(kgs) Pcs/Ctn/NW/GW/Cuft 6/CTN/12/13/0.84'
