AHR-04P

BACK TO LIST
AHR-04P

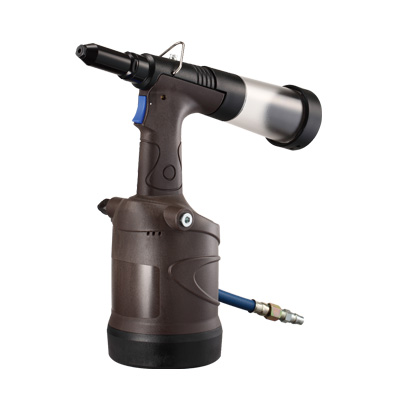

1/4" Industrial Air-Hydraulic Riveter

**with Vacuum Function & 3-Jaws**

Inquiry
  • Product Specification
MODEL NO. AHR-04P
Blind Rivet Capacity inch(mm) 5/32"~1/4"(4.0~6.4mm)
Traction Power Lbs 4194
Kgs 1906
Stroke Length 17mm
Air Inlet 1/4"
Hose Size 3/8"
Avg-Air Consumption 4.3L
MAX-Rivet Capacity AL.&Stainless 6.4mm
Stainless 6.4mm
Net Weight Lbs 6.06
Kgs 2.3
Packing(kgs) Pcs/Ctn/NW/GW/Cuft 3/CTN/7.9/8.9/2.1'
